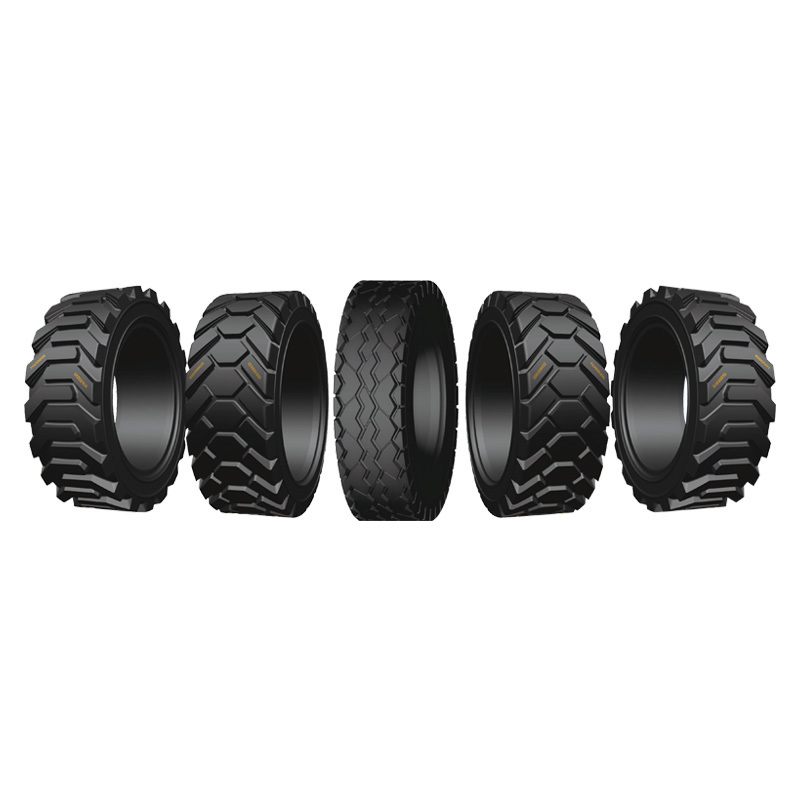

Aerial Work Vehicle Tires
Keywords：
polyurethane-filled tire
maintenance-free tire
high-altitude stability tire
puncture resistant tread
complex terrain tire
Belonging Category：Aerial Work Vehicle Tires
Product Details
◆ The tire is widened and filled with polyurethane, replacing the traditional car legs, which improves the reliability and work efficiency of the whole vehicle;
◆ The tire is filled with high-performance polyurethane materials, which makes the whole vehicle have good vibration reduction performance and enhances the stability of the whole vehicle in high-altitude operations;
◆ The unique rubber formula of the tire outer tread makes it have super puncture resistance and wear resistance, and the tire is maintenance-free throughout the life cycle of the vehicle;
◆ The unique pattern design of the tire enables it to adapt to various complex working conditions and road surfaces, ensuring safe and stable operation of the vehicle.
No. | Tire specifications | Tiers | Pattern | Rim specifications | Section width (mm) | Outer diameter (mm) | Max load 10km/h (kg) |
1 | 9-14.5 | 14 | AM861 | 14.5×7 | 241 | 720 | 1590 |
2 | 10-16.5 | 12 | AM862 | 16.5×8.25 | 264 | 765 | 2375 |
3 | 12-16.5 | 14 | AM862 | 16.5×9.75 | 307 | 810 | 3075 |
4 | 305-546(12-22.5) A | 10 | AM862 | 22.5×9.75 | 304 | 840 | 2950 |
5 | 305-546(12-22.5) B | 10 | AM862 | 22.5×9.75 | 280 | 805 | 2950 |
6 | 305-546(12-21.5) A | 10 | AM862 | 21.5×9.75 | 304 | 840 | 2950 |
7 | 305-546(12-21.5) B | 10 | AM862 | 21.5×9.75 | 280 | 805 | 2950 |
8 | 14-17.5 | 14 | AM862 | 17.5×10.5 | 349 | 935 | 3875 |
9 | 385/65D19.5 (15-19.5) | 16 | AM862 | 19.5×11.75 | 390 | 1020 | 4935 |
10 | 445/65D19.5(18-19.5) | 16 | AM862 | 19.5×13 | 450 | 1030 | 6000 |
11 | 33×15.5-16.5 | 14 | AM862 | 16.5×12 | 385 | 820 | 3670 |
12 | 10.5/80-18 | 10 | AM862 | 18×9 | 273 | 900 | 1935 |
13 | 12.5/80-18 | 12 | AM862 | 18×11 | 308 | 980 | 2625 |
14 | 385/65D22.5(15-22.5) | 16 | AM863 | 22.5×11.75 | 390 | 1070 | 5590 |
15 | 445/65D22.5(18-22.5) | 18 | AM863 | 22.5×13 | 450 | 1150 | 7320 |
16 | 355/55D625(14-24.5) | 14 | AM863 | 24.5×11.75 | 350 | 940 | 3450 |
17 | 385/45-28 | 16 | AM863 | 28×13 | 380 | 1070 | 6000 |
18 | 385/50D625(15-625) A | 16 | AM863 | 24.5×13 | 386 | 1010 | 5600 |
19 | 385/50D625(15-625) B | 16 | AM863 | 24.5×13 | 386 | 960 | 5600 |
20 | 445/45D625(18-625) A | 16 | AM863 | 24.5×15 | 430 | 1030 | 6900 |
21 | 445/45D625(18-625) B | 16 | AM863 | 24.5×15 | 430 | 960 | 6900 |
22 | 445/50D710(18-710) | 18 | AM863 | 28×15 | 445 | 1180 | 7320 |
23 | 315/55D20 | 12 | AM862 | 20×11 | 318 | 840 | 2870 |
24 | 39×15-22.5A | 16 | AM863 | 22.5×135 | 375 | 970 | 6625 |
25 | 39×15-22.5B | 16 | AM863 | 22.5×11.75 | 360 | 940 | 6525 |
26 | 840×15.5-510 | 14 | AM863 | 20×14 | 392 | 850 | 3670 |
27 | 240/55D17.5 | 12 | AM863 | 17.5×6.75 | 220 | 715 | 2000 |
28 | 26×12-16.5 | 10 | AM862 | 16.5×9.75 | 300 | 665 | 1600 |
29 | 26×12D380 | 8 | AM862 | 15×10 | 300 | 665 | 1550 |
30 | 23×10.5-360 | 6 | AM862 | 14×8 | 252 | 580 | 1500 |
31 | 33×12D610 | 12 | AM862 | 24×10 | 550 | 835 | 1800 |
32 | 36×14D22.5 | 18 | AM862 | 22.5×11.75 | 360 | 910 | 4850 |
33 | 36×14D610 | 14 | AM862 | 24×13 | 350 | 910 | 4850 |
34 | 370/75-28 | 14 | AM862 | 28×11.00 | 364 | 1273 | 5450 |
35 | 400/75-28 | 16 | AM862 | 28×12.00 | 392 | 1305 | 6500 |
36 | 1300-24 | 16 | AM862 | 24×10 | 335 | 1285 | 6500 |
37 | 1400-24 | 15 | AM864 | 24×10 | 355 | 1345 | 7300 |
