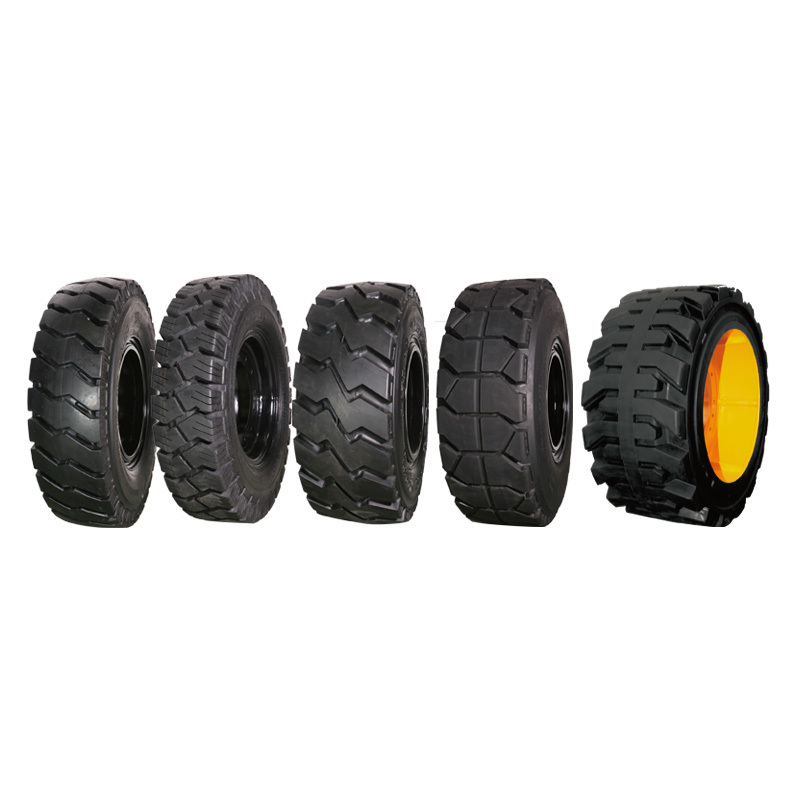

◆ The pattern design of the multifunctional scraper tire has good drainage and mud discharge performance, which enhances the overall grip performance of the tire and helps the equipment to complete multiple functions such as shoveling, forking, lifting and transporting;
◆ The reinforced sidewall design ensures that the vehicle will not be scratched or torn by hard rocks or anchor rods when driving in the tunnel;
◆ The filled tire has better elasticity than the solid rubber tire, which can buffer the vibration and impact generated during the scraper operation to protect the transmission components and the driver and passengers.
No. | Model | Tiers | Size/mm | Load/kg | |
Section width | Diameter | ||||
1 | 12-16.5 | 16 | 310 | 835 | 3710 |
2 | 14. 5-15 | 28 | 370 | 920 | 8230 |
3 | 10.00-20 | 20 | 305 | 1065 | 8200 |
4 | 12. 00-20 | 20 | 320 | 1140 | 8600 |
5 | 13.00-20 | 20 | 345 | 1150 | 8750 |
6 | 13. 00/85 -20 | 36 | 330 | 1070 | 8860 |
7 | 12. 00-24 | 28 | 320 | 1230 | 9560 |
8 | 13.00-24 | 20 | 358 | 1250 | 8285 |
9 | 14. 00-24 | 32 | 375 | 1370 | 14600 |
10 | 13. 00-25 | 28 | 350 | 1320 | 12000 |
11 | 15. 5R25 | 2X | 404 | 1270 | 11000 |
12 | 17.5-25 | 40 | 440 | 1380 | 16800 |
13 | 455/80-25 | 40 | 440 | 1380 | 16800 |
14 | 20.5-25 | 36 | 520 | 1490 | 16680 |
15 | 23.5-25 | 28 | 630 | 1600 | 17500 |
